Bathroom Vanity Cabinet Face Frames: Rails, Stiles, Sink Cutouts, and Usable Storage

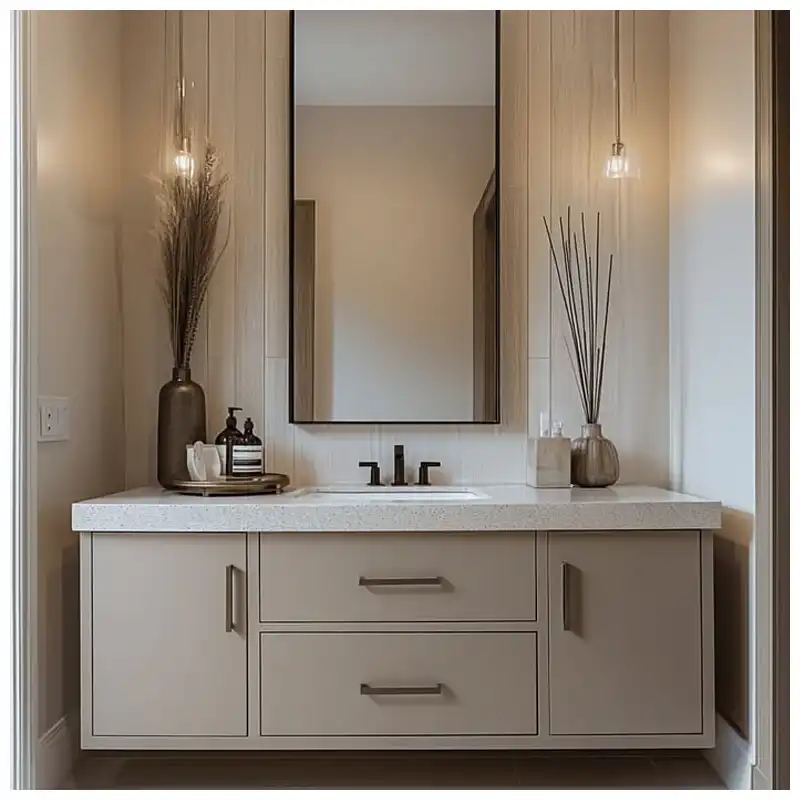

A face frame is the solid wood border glued or screwed to the front of a cabinet box, with vertical stiles and horizontal rails framing the openings. It reads as traditional and solid, and it gives the doors a flat surface to close against. The trade-off arrives the moment you draw the sink and drawers behind it. A rail that lands under a drain, or a stile that crosses a planned drawer width, turns usable storage into decoration. That is why I treat bathroom vanity cabinet face frames as a layout decision before I treat them as a look.
The frame is usually cut from solid hardwood about three-quarters of an inch thick, with stiles and rails commonly one and a half inches wide. A wider top rail and a slightly narrower mid rail are normal, but the numbers have to serve the opening, not the other way around. When a drawer bank needs a twenty-inch clear opening and the stiles leave nineteen, no finish will fix it.
What a Face Frame Adds, and What It Takes Away
The frame gives the cabinet a stronger front edge, a reliable door-mounting surface, and a way to hide the box's raw plywood edges. On a frameless cabinet the doors mount straight to the box and the opening runs full width. On a framed cabinet the opening shrinks by the combined width of the stiles on each side. For a bathroom where every inch of a narrow vanity has to hold towels, a hair dryer, and cleaning supplies, that difference is not cosmetic.
I ask for the opening dimensions, not the overall cabinet width. A 30-inch-wide cabinet box with a one-and-a-half-inch stile on each side leaves a 27-inch opening before the drawer hardware takes its share. A designer who specifies the cabinet width and forgets the frame can sign off on a drawer bank that does not fit the divider plan. The fix is one number on the elevation: clear opening, written beside the finished width.
Bathroom vanity cabinet face frames also give the door a mounting surface with more screw depth than a thin box edge. When a heavy door leans on a hinge, the frame spreads that pull across the full rail instead of concentrating it on the box edge, which is why stile width and joinery matter more than door weight alone. At the mock-up I check that pull directly: hang the door, open it fully, and feel the fixing zone for any movement before the same build repeats.
The strength the frame adds is real but only where it actually bears. A top rail that sits under the stone overhang carries load; a thin decorative rail that crosses a large sink opening is doing nothing for support and everything to block the basin.
Rails, Stiles, and the Numbers That Control Storage
The controlling dimensions on bathroom vanity cabinet face frames are stile width, rail width, and the clear opening each pair leaves. I record them against the cabinet's job, not against a style book. The table below shows the same frame components checked against what they protect.
| Frame component | Typical size | What it controls | Check before production |
|---|---|---|---|
| Stile (vertical) | 1.5 in wide, 0.75 in thick | Clear opening width | Drawer bank and door width still fit |
| Top rail | 2 to 2.25 in wide | Top support under the counter | Bearing line under the stone top |
| Mid rail | 1 to 1.5 in wide | Door and drawer separation | Does not cross a drain or valve |
| Bottom rail | 1.5 in or floor-set stiles | Clear height above the toe kick and the door swing | Sink-base door swings clear |
These sizes are common shop practice, not a code. A project specification can set its own, and the supplier's shop drawing is the record that matters. I want the width of every rail and stile marked on the approved elevation so the fabricator and the site team read the same frame.
The second number is frame thickness. A three-quarter-inch face frame plus a three-quarter-inch door front puts the drawer face nearly an inch and a half proud of the box. That combined projection has to be checked against the drawer-box envelope, the slide clearance, and the required travel, because the exact effect depends on the selected slide system and how the front attaches. Where storage depth is tight, the frame thickness is part of the drawer-envelope calculation, not a separate cabinet decision.
The Sink Cutout Is Where the Frame Fails First
The sink base is the one opening that cannot be corrected easily on site. The bowl and its mounting have to fit the cutout in the top, while the drain, tailpiece, and trap live inside the cabinet box behind the frame, and the supply lines need clear space at the back panel. A 36-inch sink base with one-and-a-half-inch stiles on each side leaves a 33-inch clear front opening, and the sink-base doors have to swing in that space. A common failure is a beautiful double-door sink base with a center stile that narrows the front opening right where the plumber needs to work the trap. I overlay the sink template and the plumbing envelope on the frame elevation before the cabinet is released.
Bathroom vanity cabinet face frames under a sink usually carry a false drawer front, a fixed panel that matches the drawers but never opens, because a real drawer would collide with the bowl. The false front is honest when it is drawn as fixed, and a problem when the installer receives a drawer box that was never meant to work. I mark the false front as a fixed panel on the drawing so nobody orders slides for it.
The center stile question is worth settling early. On a double-door sink base, a removable center stile gives a wider service opening for plumbing work; a fixed center stile keeps the doors rigid and the gap tight. Both are valid, but they change how the plumber reaches the trap. The decision belongs in the package, not in the plumber's chisel.
The Hard-Won Lesson: Measure the opening, not the cabinet
A vanity can pass a shop inspection with every door and drawer working, then fail the moment the sink and plumbing arrive. The sequence that shows it is simple: the mid rail crosses the drain, the false front is ordered as a drawer, and the center stile blocks the trap. By then the frame is assembled and the stone is templated.
The Lesson: Approve the frame against the sink template and the drawer envelope before a single rail is cut.
Joinery, Grain, and the Wet Edge
The way a frame is joined decides how it survives a bathroom, where humidity swings between a hot shower and a dry vented afternoon. A mortise-and-tenon joint locks a rail and stile together with glue and a mechanical interlock, so it holds its shape as the wood moves. The Architectural Woodwork Standards accept several face-frame constructions besides mortise-and-tenon, including dowels, metal dowel screws, pocket screws, and biscuit splines, so the honest rule is not that only one joint type is professional. Joint geometry, substrate, fixing pattern, and production quality decide whether a joint carries the door load and the wet-zone exposure.
Grain direction matters on bathroom vanity cabinet face frames because wood moves across the grain, not along it. A wide rail cut from a flat-sawn board can cup when the room humidity rises, and that cup opens the door gap at one corner. I want the joinery and the grain orientation marked on the shop drawing rather than hidden behind a finish sample.
The wet edge is the bottom rail and the sink-base opening, where a cleaning cloth and a slow drip reach every day. The finish has to cover the end grain, the bottom edge, and the cut edges around the sink opening, because those are the routes water takes into the frame. A frame sealed only on its visible face swells from behind, and the first sign is a door that no longer closes flat.
The frame also meets the vanity top along its top rail, and that bearing line supports the stone. Where the design lets the front overhang rest on the frame alone, the top rail width and the bearing material belong in the same drawing as the sink cutout, and the arrangement should be confirmed against the countertop and fabricator support details, because top support depends on the slab, the substrate, and the span as well as the cabinet. A thin decorative top rail looks fine on an elevation and does little to keep a heavy quartz top from flexing at the front edge.
A documented repair on a framed front is different from a site cut. When a drain conflicts with a rail on bathroom vanity cabinet face frames, the correct response is a redrawn frame or an approved notch with a record, not a chisel taken to an assembled cabinet. The record keeps the repair traceable so the same correction is not reinvented in every room.
Inset or Overlay Doors: the Frame Decides
An inset door sits inside the frame opening, flush with the stiles and rails. An overlay door sits on top of the frame and covers part of it. The frame gives inset doors a square opening to sit inside and overlay doors a flat face to close against, and the choice changes the whole front. Inset reads more tailored and costs more to fit, because the gap around every door has to stay consistent while the wood moves with humidity.
For a hotel bathroom, I lean overlay or full-overlay unless the interior design specifically wants the flush inset look. Overlay doors are more forgiving of the small gaps that humidity changes, and they hide the frame edges that a wet cloth and a cleaning spray reach every day. Inset doors need the gap to stay even, and a swollen door in a damp room is the first thing a guest notices.
The hinge choice follows the door style. Inset and full-overlay fronts usually differ in arm crank and mounting-plate spacing rather than in the boring itself, and the hinge mounts to the face frame in both cases. When the frame is the mounting surface, its flatness and its grain direction matter. I do not approve a hinge spec without knowing whether the bathroom vanity cabinet face frames carry an inset or an overlay front.
The sink opening is also where the frame meets the faucet and the backsplash, so I keep the faucet holes on the coordinated sink-and-countertop template and check that template against the frame elevation as one shop-drawing set. A faucet that mounts behind the bowl needs the top rail to leave room for the fixture, and a crowded opening leaves no room for a service hand later.
Specifying the Frame So the Next Room Matches
Bathroom vanity cabinet face frames need one approved elevation with every opening dimension marked, and a note that the same elevation applies to every repeated room type. The frame should also carry the joinery method, because a mortise-and-tenon joint and a simple butt joint behave differently when the wood moves or the door gets leaned on.
I keep the frame tied to the rest of the package. The solid wood frame has to agree with the cabinet box material, the vanity top bearing, the sink cutout, and the hardware schedule, so I check it beside the same drawings I use for the top and the plumbing, against the bathroom vanity cabinet range the frame ships within. The parent discussion on solid wood vanity cabinets covers the material and moisture side, while the hardware guide covers the hinges and slides that mount onto the frame.
When the installed room differs from the drawing, the first move is evidence, not adjustment. Photograph the opening with the sink and plumbing in place, pause any cutting, and compare the site frame against the approved elevation and the shop record. A documented repair can be acceptable; a rail notched on site to clear a drain is usually a sign the frame was never drawn against the plumbing.
Questions We Hear Before Release
1. What should the team confirm first about bathroom vanity cabinet face frames?
Confirm the clear opening widths and the rail and stile positions against the sink template, drawer run, and plumbing before the frame is cut.
2. How wide should the rails and stiles be?
One and a half inches is common shop practice for stiles and mid rails, with a wider top rail, but the project specification and the openings they must protect decide the real numbers.
3. Is a face frame better than a frameless cabinet in a bathroom?
It depends on the opening space and the door style. A frame adds strength and a flat door surface but shrinks the opening; frameless runs full width but needs the box edges finished and the doors mounted differently.
4. Why does the sink base carry a false drawer front?
Because a real drawer would collide with the bowl and plumbing. The false front keeps the front looking uniform, and it must be drawn as a fixed panel so no slides get ordered for it.
5. What should happen when the installed frame differs from the drawing?
Photograph the opening with the sink and plumbing in place, pause any site cutting, and compare the frame against the approved elevation before the supplier and project team decide on a repair.
Quick-Reference Checklist for Face Frames
- Mark every rail and stile width and the clear opening on one approved elevation.
- Overlay the sink template and drain center on the frame before release.
- Draw the sink-base false front as a fixed panel, not a drawer.
- Decide inset or overlay doors before the hinge spec is written.
- Photograph the first installed room with the sink and plumbing in place.
Final Conclusion
A face frame earns its place when the opening still works after the sink and drawers are drawn in. I would rather adjust one frame on paper than explain a notched rail after production has repeated the mistake across a floor. KA UNITED keeps bathroom vanity cabinet face frames tied to the cabinet box, the vanity top, the sink, and the way the room is cleaned every day.
