Bathroom Vanity Countertop Support: Long Spans, Sink Cutouts, Rails, Brackets, and Cabinet Loads
Example: a premium hotel mock-up has a wide undermount basin and a clean drawer layout. From above, the vanity looks finished. Below, the sink cutout removes most of the stone strip while the upper rail stops short for plumbing access. The top rests securely at both ends, yet the center has no clear load path. That is where bathroom vanity countertop support becomes a package decision rather than a stone-only note.
My direct answer is to draw every bearing line. I want the cabinet partitions, front and rear rails, wall cleats, brackets, sink clips, seams, and openings shown beneath the surface. Then I check whether installation and maintenance can still reach the faucet, drain, and upper drawer. A vague note saying "provide support as required" does not release a repeated room type.
Table of Contents
- Map the load path
- Measure spans around the sink
- Coordinate rails and drawers
- Place seams and brackets
- Test the first room
- Record inspection evidence
- Respond to a site conflict
Map Bathroom Vanity Countertop Support before Cutting
I begin with a plan and two sections. The plan shows where the surface meets cabinet sides, partitions, fillers, and walls. The sections show what carries the front and rear edges. A support line that disappears at the basin or plumbing chase must be replaced by a specific detail, not by optimism.
The Hotel Bathroom Vanity Packages: Complete Guide to Tops, Cabinets, Sinks, Sizes, and Project Coordination keeps the surface, cabinet, sink, and room type under one approval record. I use that record to freeze the cabinet revision before the stone drawing moves to production.
An integrated quartz sink changes the local geometry because the bowl and deck form one fabricated assembly. The support layout must follow the actual bowl profile and drain access rather than a generic rectangular opening.
A span is more than the distance between two cabinet sides
The useful vanity top span is the unsupported distance after cutouts, seams, appliance-like fittings, and service openings are included. A narrow bridge in front of a basin may need a different solution from the solid area beside it, even when both sit within the same cabinet width.
I also ask what happens during installation. A surface may be carried before every bracket is fixed. If the temporary lifting points place stress across a sink bridge, the permanent support detail arrives too late. Handling and setting instructions belong with the final drawing.
| Support zone | Drawing evidence | Physical check | Release concern |
|---|---|---|---|
| Front edge | Continuous rail, partition, or specified bracket | No conflict with drawer movement | Rail removed for sink or handle access |
| Rear edge | Cabinet rail, wall cleat, or approved bearing line | Wall condition and fixing route visible | Uneven wall leaves intermittent contact |
| Sink bridge | Cutout dimensions and remaining strips | Bowl clips and reinforcement fit | Cutout removes the assumed bearing area |
| Cabinet joint | Partition positions and top seam relationship | Adjacent boxes level to one datum | Joint creates a step or unsupported seam |
| Open knee space | Bracket type, spacing, fixing substrate | Clearance remains usable | Decorative panel hides missing structure |
| End return | Finished panel, filler, wall, or frame support | Edge and corner remain serviceable | Overhang exceeds the approved condition |
Check the Sink Cutout before Choosing Rails
A large bowl can remove the exact place where a cabinet designer expected to put a rail. I overlay the sink template, clips, drain, overflow, faucet hardware, upper drawer, and cabinet partitions. That overlay tells us which rail can remain, which opening needs to move, and where a separate structural member may be required.
The published Vanity Sink Cutout and Drawer Clearance for Hotel Bathrooms deals with the service envelope below the bowl. Here I use the same overlay to resolve sink cutout reinforcement without trapping the plumbing.
A single-sink sintered stone vanity countertop needs the fabricator's approved method for its thickness, cutout, edge build-up, backing, and support. I never transfer a quartz detail to a thinner panel simply because the cabinet width looks similar.
Rails must carry load without blocking movement
Vanity cabinet rail support has two jobs: it contributes to cabinet rigidity and gives the surface a reliable bearing line. It must also leave room for sink clips, mounting nuts, hoses, drawers, and future repairs. A rail that works only before the faucet is installed is not a finished solution.
I ask the cabinet shop to dimension the rail from a stable cabinet datum. The stone shop then shows the cutout from the same datum. If each trade works from a different edge, a small dimensional shift can place the narrowest stone strip directly over the rail opening.
Here is what I would do: assemble one cabinet with its exact sink and hardware, place a template for the top, and inspect the support from below. That view catches more than a polished rendering ever will.
The Hard-Won Lesson: The Cabinet Rail Ended at the Weakest Strip
Example: a double-basin vanity uses a central cabinet partition, but the stone seam sits 45 mm away from it. One rear rail is shortened for faucet access, and the narrow strip behind the cutout carries across the gap. Nothing appears wrong in the elevation. The underside overlay reveals that the seam, rail opening, and cutout all concentrate in one zone before any top is cut.
The Lesson: Never approve a seam, cutout, or rail separately; overlay all three and give every stressed zone a named load path.
Resolve Long Vanity Top Spans and Open Zones
Long vanities often combine drawers, open towel shelves, knee spaces, or decorative gaps. Each transition changes the support condition. I divide the top into zones and mark the actual bearing at every change rather than applying one rule to the full length.

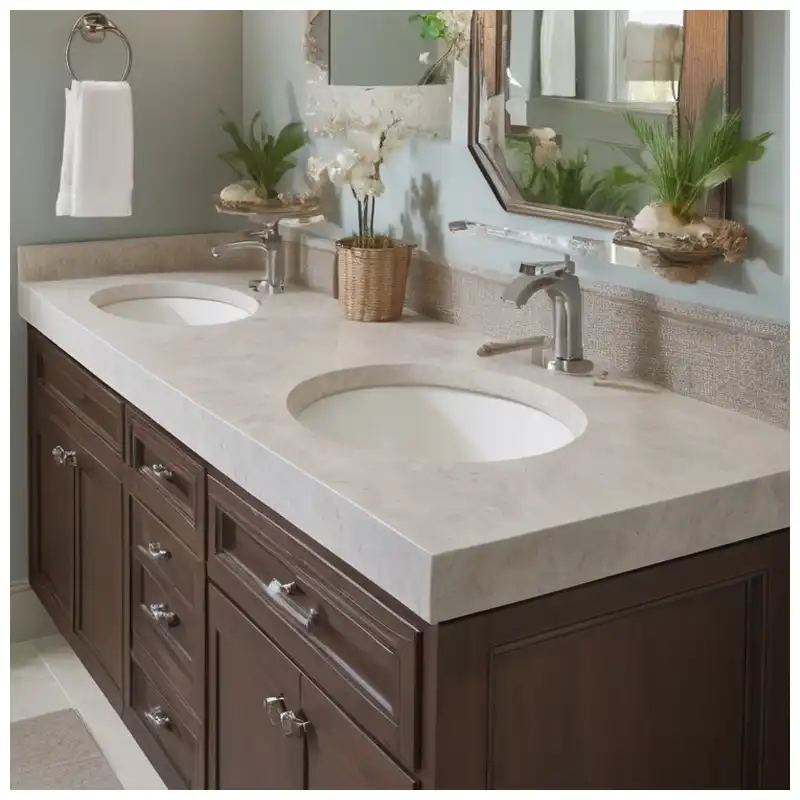

A double-sink quartz vanity top may cross several cabinet boxes. The boxes must share a level datum, and the joint between them cannot create a high point under the surface. The installation team needs a leveling sequence before adhesive is applied.
The maximum acceptable vanity top span is project-specific. Material, thickness, edge build-up, cutouts, reinforcement, loads, support width, fixing substrate, and fabricator guidance all affect it. I will not publish one magic distance and pretend it replaces engineering judgment.
I place sink cutout reinforcement on the same approved section as the open zone, because a hidden solution cannot be inspected from the finished elevation.
Brackets need a substrate and an access plan
A bracket symbol is incomplete without its material, size, spacing, fixing points, substrate, finish, and installation stage. If it fastens to a thin decorative panel, the drawing has described appearance but not structure. If it blocks a drawer or knee space, the detail has solved one problem by creating another.
I coordinate the bracket with the floating vanity unit with sink only where the wall fixing and cabinet construction support that exact assembly. The article on floating units addresses wall-mounted cabinets; this decision concerns the surface load path across and above the cabinet.
The countertop is also exposed to temporary loads during cleaning and maintenance. I keep likely leaning points in mind, especially at open knee spaces and wide sink bridges.
Place Seams over Controlled Bathroom Vanity Countertop Support
A seam should not float over an uncertain void. I prefer a controlled support condition that allows alignment, adhesive work, and later observation without crowding the sink hardware. The exact location follows the material pattern, slab yield, cabinet modules, and installation access.
Bathroom vanity countertop support must remain continuous enough for the seam detail selected by the fabricator. When a cabinet partition sits nearby but not directly below, the drawing should show how that offset is handled.
Pattern matters too. A visually quiet seam may require a slab layout that moves it away from the obvious cabinet division. That can be reasonable, but the structural detail must travel with the design decision. I do not let the vein map silently rewrite the bearing plan.
Prove Bathroom Vanity Countertop Support in the First Room
The mock-up needs the production cabinet, actual hardware, selected sink, top thickness, edge build-up, splash, and planned fixing method. I inspect the underside before drawers and access panels hide it. Then I operate every moving part and remove one service component.
Bathroom vanity countertop support is accepted only after the cabinet is level and fixed as it will be on site. A top sitting on an unfixed box can hide movement that appears after plumbing work or door adjustment.
The Hotel Bathroom Vanity Mock-Up Approval Before Multi-Room Production provides the release framework. I add underside photographs, bearing dimensions, bracket identification, and a note showing which components were removed during the access test.
Inspection records must show more than a finished elevation
I photograph the front, top, and underside with room and component codes visible. A straightedge across cabinet joints helps record alignment. The report identifies the cabinet drawing, surface drawing, sink template, bracket detail, and approved deviation, if any.
Final inspection checks vanity cabinet rail support before the basin, drawer, or protective covering blocks the view. If a rail or bracket differs from the approved first room, production stops at that unit until the change is understood.
Where Support Decisions Usually Go Wrong
The first error is relying on thickness alone. The second is treating the cabinet elevation as proof of bearing. The third is adding brackets after the drawer layout is fixed. The fourth is placing a seam for visual reasons without checking the support below. Each mistake comes from separating documents that describe one assembly.
I also see teams approve a beautiful top before the cabinet manufacturer receives the final sink. That leaves the shop to cut rails around an assumed bowl. This is where you don't cheap out: buy or borrow the real fixture for the mock-up and make the underside visible.
The Hotel Bathroom Vanity Packages: Complete Guide to Tops, Cabinets, Sinks, Sizes, and Project Coordination records the responsible party and revision route. Bathroom vanity countertop support is released with that package because no single supplier controls every interface.
What to Do When Bathroom Vanity Countertop Support Conflicts on Site
First, photograph the surface, cabinet interior, sink, seam, and missing or displaced support with a scale. Second, do not install the basin, apply permanent adhesive, or load the top until the issue is reviewed. Third, send the supplier the original cabinet section, stone drawing, sink template, bracket detail, and first-room inspection record for comparison.
A site correction may involve leveling, a rail, a bracket, a cabinet partition, a seam treatment, or a replacement component. The solution depends on the actual substrate and material. Do not improvise a hidden block that prevents plumbing service later.
Frequently Asked Questions
1. How is bathroom vanity countertop support planned?
Map every bearing line beneath the top, including cabinet sides, partitions, rails, wall cleats, and brackets. Overlay the sink cutout, seams, plumbing, drawers, and service access before approving the material-specific detail.
2. Does a thicker vanity top need no extra support?
No. Thickness is only one condition. Cutouts, long openings, seams, edge build-ups, material properties, cabinet alignment, temporary installation loads, and the fabricator's requirements still determine the support arrangement.
3. Can a countertop seam sit between two vanity cabinets?
Only when the fabricator accepts the seam detail and the drawing provides controlled bearing, alignment, and installation access. Do not assume two nearby cabinet sides automatically support an offset seam.
4. How should support be inspected before basin installation?
Photograph the underside, identify each rail or bracket, measure the bearing locations from cabinet datums, check box alignment with a straightedge, and operate drawers and plumbing hardware before access is closed.
5. What should I do if support is missing after delivery?
First, document the surface, cabinet, sink, seam, and support condition with scaled photos. Second, stop permanent installation and loading. Third, compare the site condition with the approved drawings and inspection record through the supplier before choosing a correction.
Quick-Reference Checklist for Vanity Top Support
- Mark every cabinet side, partition, rail, wall cleat, and bracket beneath the top.
- Overlay the final sink cutout, clips, faucet hardware, drain, drawers, and plumbing route.
- Place seams over a controlled bearing and installation condition.
- Specify bracket material, spacing, fixing substrate, finish, and installation stage.
- Level adjacent cabinet boxes to one documented datum before setting the surface.
- Photograph the first room from below before drawers and basins hide the support.
Final Conclusion
Bathroom vanity countertop support works when every load has a visible route through the surface, cabinet, bracket, and wall condition. Draw the bearing, overlay the cutouts and seams, prove access on the first room, and preserve the evidence for production.
I would rather open one more cabinet and inspect the underside at KA UNITED than explain a hidden support guess after the basin is sealed in place.
