Bathroom Vanity Toe Kick: Height, Recess, Cleaning, Water Protection, And Floor Tolerance
Bathroom Vanity Toe Kick: Height, Recess, Cleaning, Water Protection, and Floor Tolerance
Example: a hotel mock-up vanity looks balanced until housekeeping brings in the floor tool. The decorative plinth sits nearly flush with the doors, so the operator cannot stand close to the basin and the mop head leaves a wet strip against the cabinet. The drawing showed a neat shadow. Daily use exposes the missing bathroom vanity toe kick decision.
My direct answer is to detail the base in section. Record the recess height and depth from the finished floor and finished door face, identify the structural support, show the visible panel, allow for leveling, and state how the floor joint will be cleaned and protected.
Table of Contents
- Separate base and plinth
- Set stance dimensions
- Read the finished floor
- Plan water protection
- Keep cleaning access
- Test removability
- Release room-type details
Draw the Bathroom Vanity Toe Kick as an Assembly
The dark strip below a cabinet can contain adjustable legs, a ladder base, rails, clips, sealant, ventilation, lighting, and a removable panel. I do not let one elevation line stand for all of that. A section names the components and shows which one carries load.
The Hotel Bathroom Vanity Packages: Complete Guide to Tops, Cabinets, Sinks, Sizes, and Project Coordination connects this base to the full vanity package. Top height, basin reach, cabinet depth, floor finish, and base recess affect one another. Raising the plinth without checking the top can move the whole user relationship.
The vanity plinth detail needs a datum. I measure from the finished floor, not the structural slab, and from the finished door or drawer face, not the cabinet box. Tile build-up, stone flooring, thresholds, and falls can change the real geometry.
Separate structural support from the visible panel
Adjustable legs may support and level the cabinet while a clipped panel closes the view. A ladder base may carry load directly. Either way, I want the removable piece identified so maintenance does not mistake it for structure or seal it permanently without approval.
A drawer-led bathroom vanity can put heavy storage near one side. The support layout must suit the cabinet engineering; the decorative recess alone does not explain load paths.
| Base checkpoint | Drawing information | Use test | Hold condition |
|---|---|---|---|
| Recess height | Finished floor to bottom of cabinet or panel | Foot position and cleaning tool clearance | Floor build-up still provisional |
| Recess depth | Finished front to visible plinth face | Comfortable stance at basin | Handle or door plane not included |
| Support | Legs, rails, ladder base, fixing points, load transfer | Cabinet stable at full service load | Decorative panel treated as structure |
| Leveling | Adjustment range and access route | Installer can level after floor completion | Adjustment hidden before final set |
| Moisture edge | Material, coating, seal joint, cut-edge treatment | Wet cleaning and small spill test | Raw edge or trapped water pocket |
| Removal | Clip, magnet, screw, or access method | Panel removed without damaging floor | Sealant is the only retention method |
Set the Recess for Stance and Reach
A person standing at the basin needs room for the front of the foot. If the plinth sits too far forward, the user leans from the waist. If it sits very deep, the shadow may expose supports or make the panel difficult to reach. I test the finished cabinet with the actual handle projection and basin position.
Bathroom cabinet floor clearance also affects accessibility decisions, but I do not apply one generic toe recess to every accessible room. The project designer must coordinate required knee and toe clearances, fixture height, pipes, protection, and local code. A standard cabinet plinth is not a substitute for an accessible vanity design.
A floating vanity unit with sink removes the floor plinth but creates a different cleaning and structural condition. The clear underside, wall support, trap visibility, and finished floor still require a coordinated section.
Read the tile floor before freezing the base
Bathroom floors are rarely abstract level planes. Falls may lead toward a shower or drain. Tile and grout can vary. A long cabinet crossing a slope may need adjustable support and a controlled bottom reveal. I ask for measured finished-floor levels along the vanity line.
The bathroom vanity toe kick should not be cut as a fixed rectangle before those levels are understood. A scribed removable plinth can close a variable gap, while the structural support remains level. The detail depends on the cabinet system and floor condition.
I also check whether the floor finish continues under the cabinet. That choice affects future replacement, leveling, moisture exposure, and the visible gap when a panel is removed. It belongs on the room finish drawing.
The specified bathroom cabinet floor clearance must therefore reference the completed tile or stone surface and any local fall across the cabinet run.
The Hard-Won Lesson: A Straight Plinth Met a Sloping Floor
Example: a 1,800 mm vanity spans a tiled floor that falls 9 mm toward the wet area. The factory plinth is a fixed-height finished board. One end touches the tile while the other leaves a dark open wedge, and forcing it down would pull the cabinet out of level. The mock-up changes to an adjustable support with a separately scribed removable face.
The Lesson: Measure the finished floor along the full cabinet run before releasing any fixed-height visible plinth.
Build Vanity Base Moisture Protection around Real Cleaning
Vanity base moisture protection starts with suitable materials and finished edges, but the geometry matters too. A recessed panel can trap water where the floor meets the base. A silicone bead may help at one joint while also making a service panel impossible to remove.
The published Hotel Vanity Moisture Protection for Cabinets covers cabinet materials, edges, plumbing leaks, and cleaning exposure. Here I focus on the floor interface: where water lands, where it can escape, and which part can be replaced.
I ask the operator whether floors are damp-mopped, machine-cleaned, or sprayed. Then I detail the lower edge and joint for that method. A bathroom is not a dry furniture showroom. Thank goodness we can test the mock-up before repeating the detail across rooms.
Keep Leveling and Service Access Available
Installers need access to feet or fixing points until the cabinet, top, doors, and adjacent finishes are aligned. If the visible panel closes too early, later adjustment damages it. I define when the plinth is fitted and who signs off the level.
A removable face also helps inspect minor leaks and floor conditions. It should come off with a known tool and without removing the stone top. The vanity plinth detail records clip locations or fasteners so maintenance does not pry blindly.
On a pure white quartz bathroom countertop, the level top makes small cabinet and floor errors easy to see. I check door gaps and top level after the base is adjusted, then fit the visible panel to the verified condition.
Coordinate the Base with Doors, Drawers, and Lighting
Door and drawer fronts establish the visual plane from which the recess is read. Handleless fronts, applied pulls, and thick rails can change how close a foot can stand. I open the lowest drawer while a person stands at the basin to see whether the stance remains comfortable.

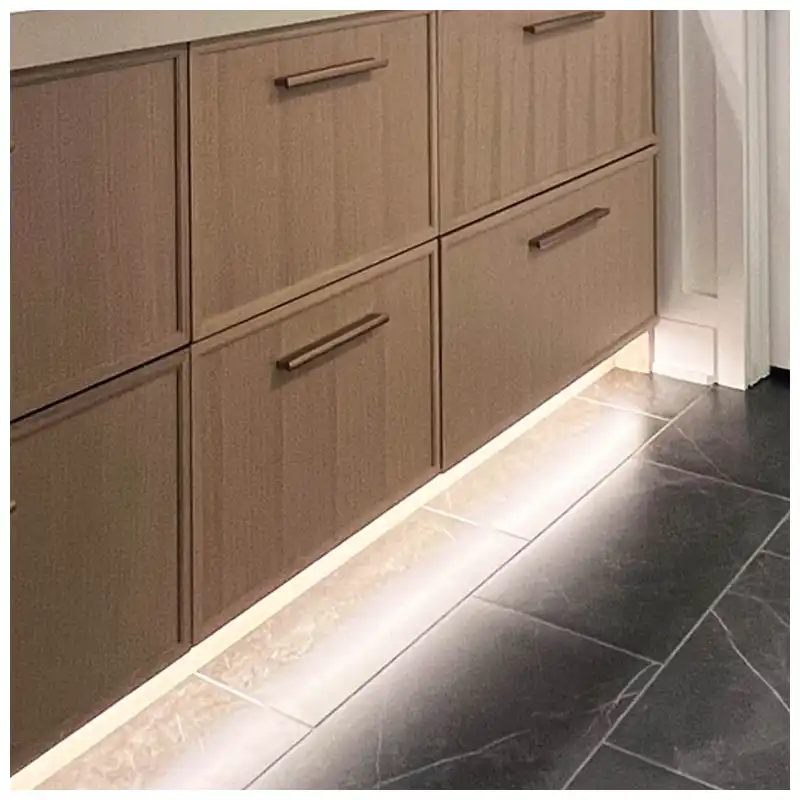

Integrated plinth lighting needs a channel, cable route, driver access, heat management, and a cleaning plan. I do not add it as a glowing line in the rendering and leave the cabinet shop to find space later. Reflected light can reveal every wave in an uneven floor.
The Hotel Vanity Lighting Checklist before Bathroom Approval includes mock-up observations under actual room lighting. Use it to inspect the shadow beneath the cabinet, not only the mirror and face lighting.
I photograph the approved bathroom vanity toe kick with doors closed and open so the recess can be checked against both appearance and movement.
Approve the Base by Room Type
Bathroom vanity toe kick details may vary between standard rooms, suites, public washrooms, and accessible rooms. I record those variants in the room schedule with separate cabinet codes. A note saying "typical" should not override a different floor build-up or clearance requirement.
The Bathroom Vanity Room-Type Schedule for Hotels gives the control structure. I add base type, finished height, recess, removable panel code, and floor reference so the installer knows which detail belongs where.
Inspection measures the bathroom vanity toe kick only after the cabinet is level, because an unfinished adjustment can make the visible gap misleading.
The cabinetry must meet the project specification and applicable requirements. My job is coordination: make the support, finish, access, and room condition visible enough that the responsible designers and installers can approve the assembly.
Where the Lowest Detail Causes the Biggest Annoyance
The failures are predictable: dimensioning from the slab instead of finished floor, hiding leveling feet, using an absorbent raw lower edge, sealing a removable panel permanently, and copying one recess into every room. None appears dramatic on a shop drawing. All can irritate users or maintenance every day.
Bathroom vanity toe kick deserves the same mock-up discipline as the top and sink. I stand at the basin, open the lowest front, clean the floor edge, remove the panel, and inspect the wet joint. That short test answers more than a polished rendering.
The Hotel Bathroom Vanity Packages: Complete Guide to Tops, Cabinets, Sinks, Sizes, and Project Coordination ties the result to top height, cabinet depth, room type, and maintenance planning. The base is not a separate trim item once it affects the whole package.
A replacement record preserves the bathroom vanity toe kick material, finish, fixing method, and scribed dimensions for rooms where the panel may be renewed later.
Escalate a floor or base mismatch before sealing
First, photograph the full cabinet, finished floor, level readings, open gap, and base components. Second, do not scribe, seal, or force the panel until the cabinet level and support are checked. Third, send the supplier the floor survey, approved cabinet section, room code, and mock-up record for comparison.
Frequently Asked Questions
1. What is the purpose of a bathroom vanity toe kick?
It gives the user's feet room near the basin, hides or finishes the cabinet support, and creates a controlled floor interface. Its height, depth, material, removal method, and moisture detail must match the cabinet and finished floor.
2. Should a vanity plinth be removable?
A removable face often improves access to leveling feet, floor conditions, minor plumbing inspection, and replacement. The structural base remains separate. Record the clip or fastener method so maintenance can remove the panel without damage.
3. How does a sloping bathroom floor affect the base?
The cabinet must remain level while the visible lower gap follows or closes against the finished floor. Measure levels along the full run. Adjustable supports and a separately scribed face may handle variation better than one fixed-height board.
4. Can silicone alone protect the cabinet base from water?
No. Protection also depends on the panel material, finished edges, joint geometry, cleaning method, plumbing control, and ability to inspect or replace affected parts. Sealant must not unintentionally lock a service panel in place.
5. What should I do if the plinth does not fit the finished floor?
First, photograph the cabinet level, floor variation, panel, and gap with dimensions. Second, stop scribing or sealing. Third, compare the floor survey, cabinet section, room code, and mock-up record with the supplier before changing the support or visible panel.
Quick-Reference Checklist for Vanity Base Details
- Measure recess height and depth from finished surfaces.
- Separate structural support from the removable visible plinth.
- Survey finished-floor levels along the complete cabinet run.
- Protect cut edges and define the floor joint for the cleaning method.
- Keep leveling points and service access available until final alignment.
- Test stance, lowest drawer movement, mopping, and panel removal.
Final Conclusion
Bathroom vanity toe kick is a small assembly with a large daily effect. Draw the support, visible panel, recess, floor variation, moisture edge, and service method; then test all of them in the mock-up.
Don't ask me how I know: at KA UNITED, I would rather adjust one plinth detail now than watch housekeeping fight the same wet floor edge in every room.
